The GoPro HERO9 Black measures 71.0 × 55.0 × 33.6 mm and weighs about 159 g (5.6 oz) with battery and card — and the HERO10 Black uses the identical body, so the same housings, cages, and mounts fit both. GoPro’s official figures, my own measurements, and the design diagrams are below.
It’s noticeably bigger than the HERO8 Black, which is why HERO8 housings don’t fit. For other models, the GoPro accessories guide shows which generations share a body.
UPDATE: The HERO10 Black is now out, and uses the same body as the HERO9. So the dimensions for the HERO10 Black are the same as those for the HERO9 Black, and they will fit in the same housings and use the same port layout.
Some readers have been asking about the precise dimensions of the GoPro HERO9 Black so that they can try to determine whether it will fit in existing accessories.
Have Camera Will Travel Newsletter
Practical field notes, hands-on gear tests, and the fun of exploring the world with a camera in hand.
GoPro provides this information in some useful illustrations, but it’s under the tech specs section, which isn’t all that obvious to find on their website. So I’m including the illustrations below.
Official GoPro measurements of the GoPro HERO9 Black
These are the measurements they provide:
- Total Height: 55.0 mm
- Total Width: 71.0 mm
- Total Depth (from back to the front of the lens port): 33.6 mm
They only provide the dimensions in metric, and they’re so precise that I don’t want to introduce potential errors with my own conversions to imperial. But it’s easy to find online conversion tools.
My measurements
It’s obviously an incomplete list. They don’t seem to provide measurements for the depth of the lens port back to the main body or the precise positions of the buttons or ports, all of which might be important if you’re trying to see whether the new camera will fit in an existing cage or frame.
So here are my measurements of some of the missing dimensions. For these, I used digital calipers. I’ve tried to be as accurate with it as I can, but it’s possible they might be off by a millimeter or so here or there.
- Body thickness (without lens port): 27.5 mm / 1.1 inch
- Lens Port Width: 31.8 mm / 1.25 inches
- Lens Port Height: 31.8 mm / 1.25 inches
- Lens Port Depth: 5.3 mm / 0.21 inches
The fold-down attachment fingers are centered on the camera, as they were with the HERO8 Black.
When you’re looking at the top with the lens pointed away, the shutter button is the same distance from the left as with the HERO8 Black. But the HERO9 Black’s extra width means that there’s more space to the right of the shutter button.
They’ve gone back to a removable lens port on this camera, and it’s slightly deeper than the non-removable lens port on the HERO8 Black.
Weight of the GoPro HERO9 Black
With the battery and a memory card installed (but no other attachments), it’s weighing in at 5.6 ounces / 159 grams.

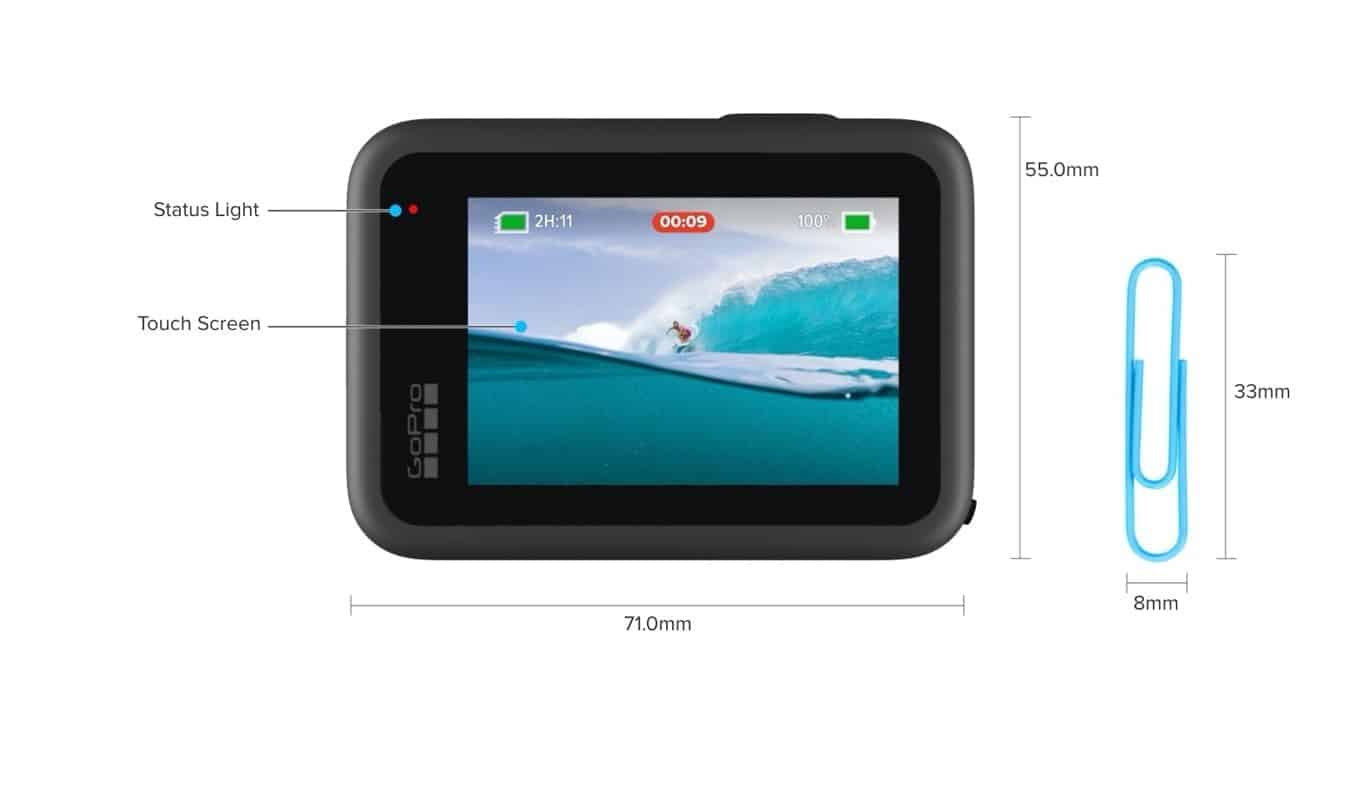

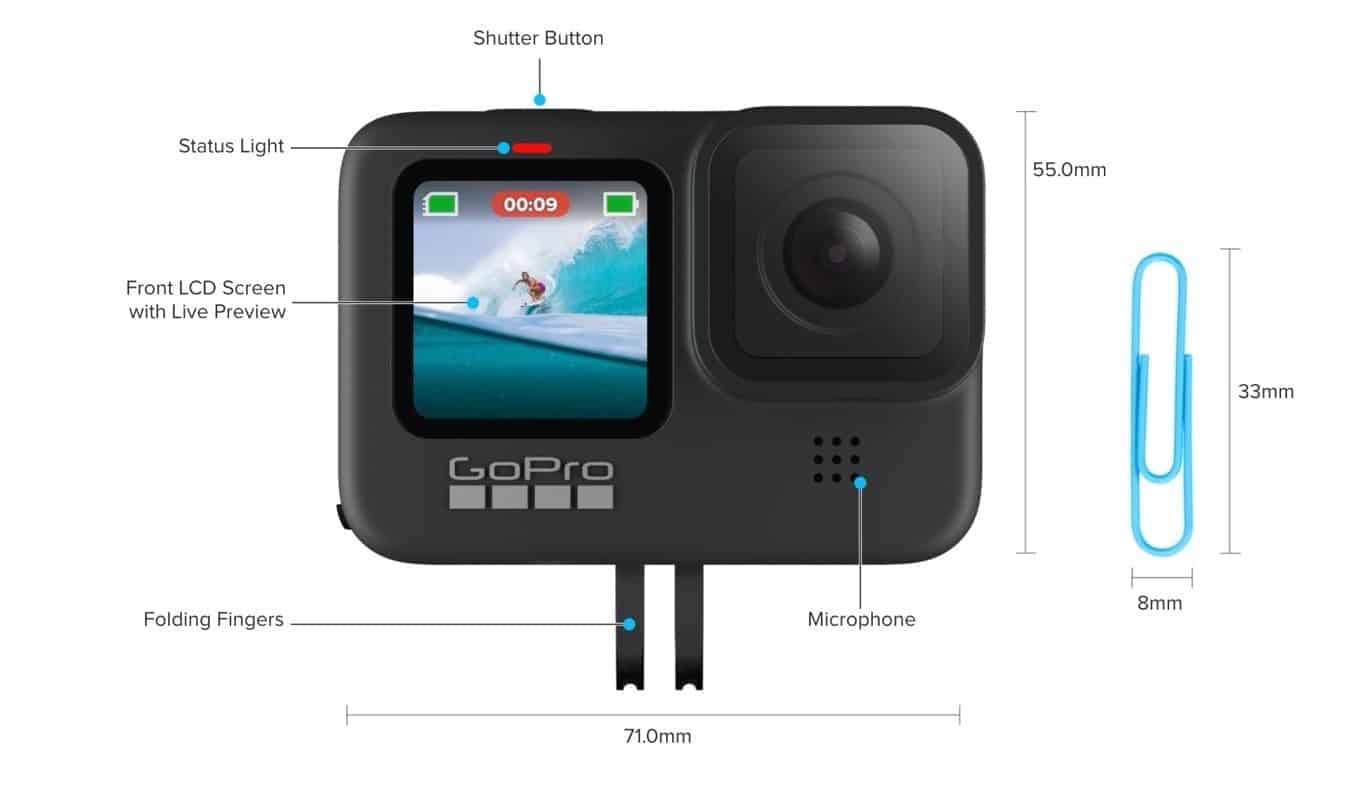

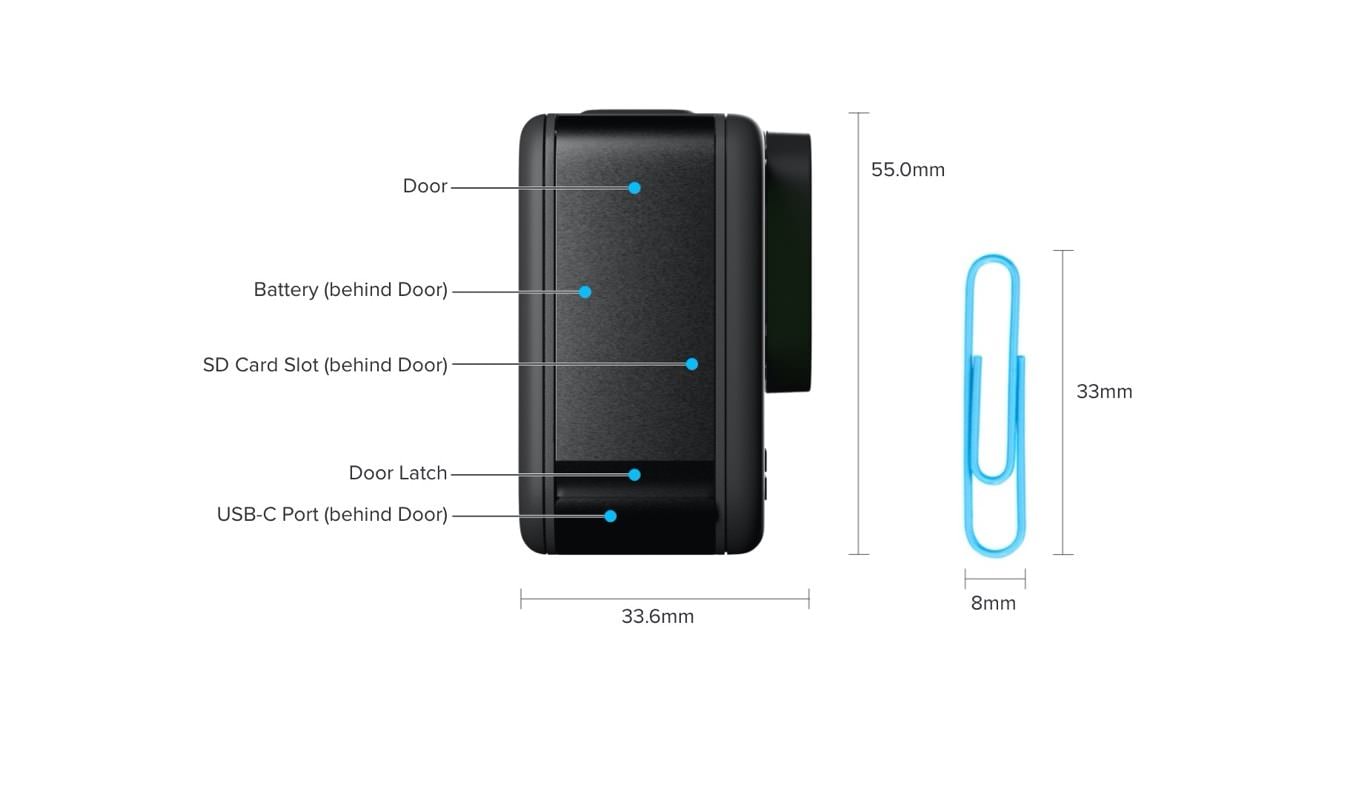

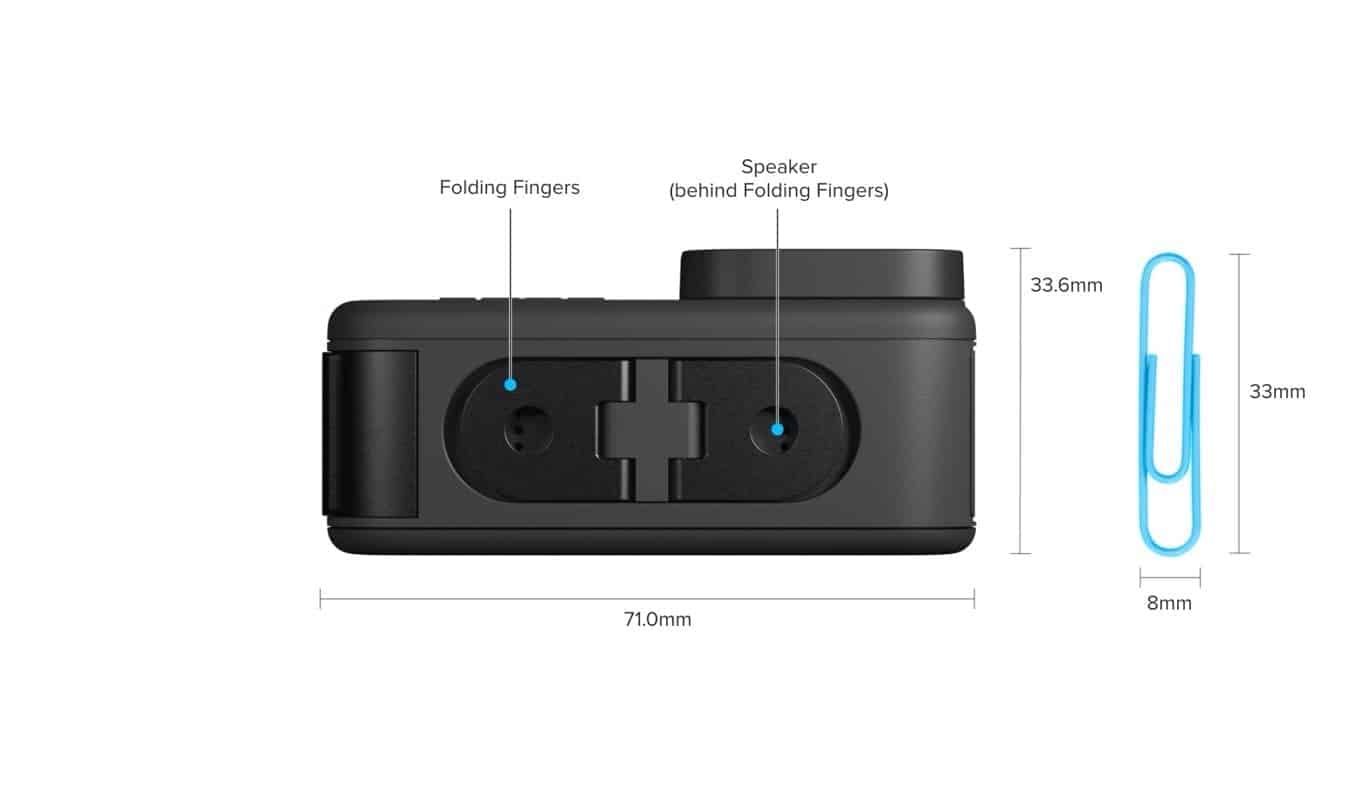

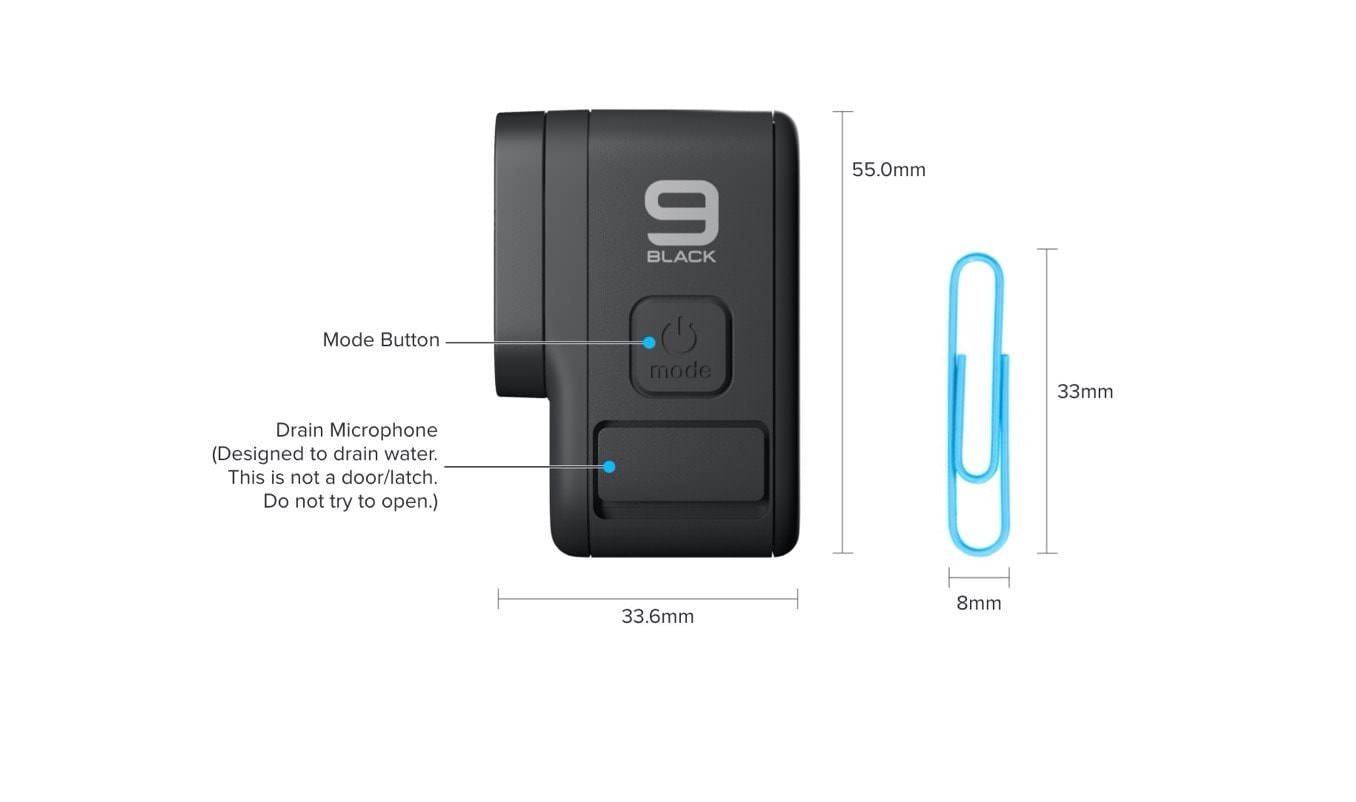

GoPro HERO9 measurements diagrams
Here are the design illustrations provided by GoPro.
Finding a HERO9 Black today
GoPro discontinued the HERO9 Black some time ago, so the used market is the place to look now — sites like MPB and eBay.
