GoPro Tripod Mounts: Types and When to Use

Most GoPros don’t have a tripod thread, so you need an adapter. The simplest is a small tripod mount with GoPro-style prongs on top and a 1/4-20 socket underneath (a few dollars, and it works with any GoPro that has mounting fingers or sits in a frame or housing). The exceptions are the HERO12 Black, HERO13 Black, MAX2, LIT HERO and MISSION 1 series, which have a 1/4-20 tripod thread built into the base. A reverse adapter does the opposite job: it lets you put a regular camera on a GoPro mount. The types, when each makes sense, and the special cases (super clamps, hot shoes) are below.

From the HERO8 Black on, the HERO Black models have folding mounting fingers built into the base, as do the MAX, MAX2, HERO11 Black Mini, HERO (2024), LIT HERO and MISSION 1 series, so the same adapters work without a frame. (The FPV-oriented HERO10 Black Bones is the exception: its mounting fingers are a detachable piece that screws on.) See the accessories guide for what’s worth carrying.

Most cameras have a standard tripod thread built into the bottom. For most of their history, GoPros haven’t. The HERO12 Black, HERO13 Black, MAX2, LIT HERO and MISSION 1 series are the exceptions: they have a 1/4-20 thread in the base alongside the folding fingers, so they screw straight onto a tripod. GoPro’s manuals warn that a 1/4-20 mount can work loose in extreme conditions and recommend the fingers for those. Every other GoPro needs an adapter.

So how do you put a GoPro on a tripod? Tripods might be old-fashioned–certainly not as exciting as mounting it on a snowboard or plane wing or helmet or bike–but there are times that they’re hard to beat. Maybe you’re shooting time-lapse or long exposure shots of the Milky Way or capturing an event from a fixed viewpoint. Or perhaps you want the versatility of a tripod ballhead without actually using the legs at all.

Yes, you can now buy small tripods built and marketed specifically for GoPros, with the GoPro-style adapter built in. But you’re not limited to those. You can use any GoPro on any tripod with a small tripod conversion adapter, attached to the camera’s built-in mounting fingers or, on older models, to the frame or housing that came with it.

There are two parts to the solution. The first is the GoPro-style attachment point. On most GoPros since the HERO8 Black, it’s built into the camera as folding mounting fingers. On earlier HERO models, you put the camera in a frame or housing, which has the attachment point on it.

The second part, unless your GoPro has a built-in 1/4-20 thread, is a converter to go from the GoPro-style attachment to a standard tripod thread. The GoPro attachment system has several advantages for the types of mounts that you’re likely to want to use with a GoPro or other action camera. The interlocking tongues use friction to lock very tight, and you can adjust the vertical tilt without risking it rotating loose. There are thousands of types of mounts and clips that use the GoPro connector, allowing you to mount the camera in a gazillion different kinds of places.

So here’s a rundown of the various options available.

Tripod connection basics

For decades, most camera tripods have had a small threaded stud, and the thread sizes are set by an international standard.

The standard thread on tripods is known as a 1/4-20 UNC thread.¹ That’s the one you find on the bottom of most cameras and on most tripod heads. And that’s the connection I’m focusing on here when I refer to a tripod mount.

There’s another standard stud used on many tripods, mainly larger ones, that’s known as 3/8-16 UNC.² It’s much less relevant to GoPros, but I’m mentioning it here in case you run into the rarer case of trying to connect a GoPro to that thread. It’s a thicker–and therefore potentially sturdier–stud that’s often used to connect tripod legs to the bottom of a tripod head or for much larger professional cameras. It’s not usually used for the connection between the tripod head and most consumer cameras.

There are situations where doing without a tripod head entirely and attaching the camera directly to tripod legs works better, but that’s a rather specialized approach, and GoPro adapters that connect directly to 3/8-16 threads aren’t readily available. But many current tripods have a safety net in the form of a 1/4-20 UNC adapter that’s included to get up to the 3/8-16 UNC size. If you remove that, it will expose a 1/4-20 stud underneath.

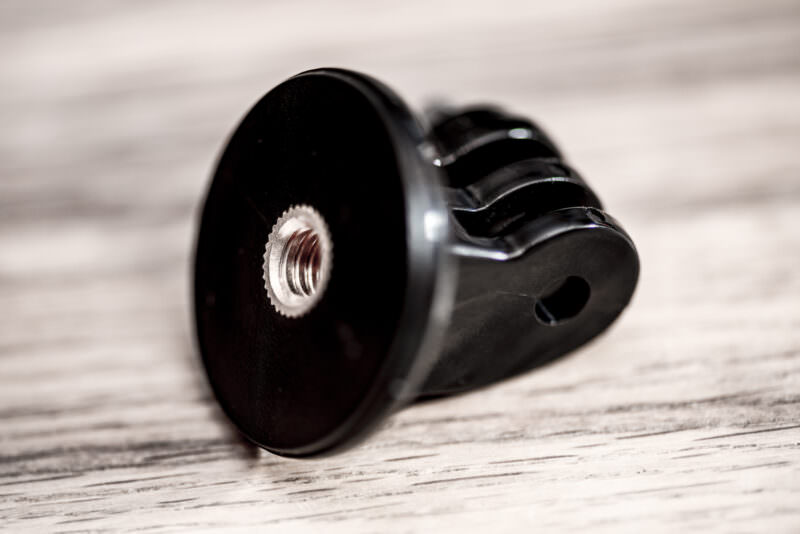

Simplest GoPro tripod adapter

The most straightforward tripod adapter for GoPro mounts has a threaded socket on the bottom and a GoPro three-tongued connection on top. They screw on to a 1/4-20 stud.

With HERO models before the HERO8 Black, you’ll still need to put the camera in a frame or housing. Unless your GoPro has a built-in 1/4-20 thread (the HERO12 Black, HERO13 Black, MAX2, LIT HERO and MISSION 1 series do), you’ll also need a GoPro tripod adapter to convert from the tripod’s threaded stud to the GoPro-style mount. (Newer GoPro models have folding mounting fingers built into the base of the camera body.)

In most instances, these work very well. They’re cheap and straightforward. But there are a couple of downsides that I run into, particularly in situations where there’s a lot of movement or vibration. One is that because these are a simple screw-on approach, vibration can cause them to loosen. Another is that it can be hard to align them precisely because you’re at the mercy of the length of the stud. If you can rotate the base, say on a ballhead, it’s generally easy to fix, but that’s not always possible.

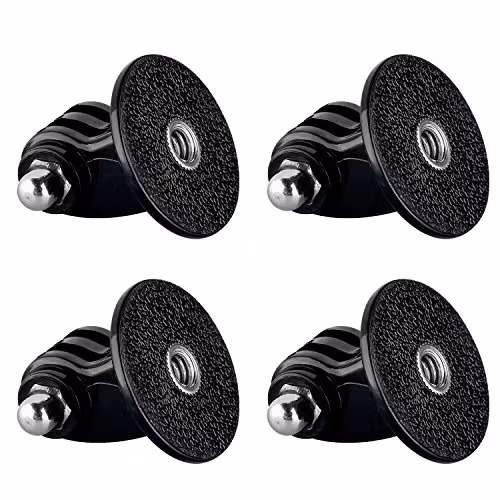

You can get cheap, simple, plastic versions, like this:

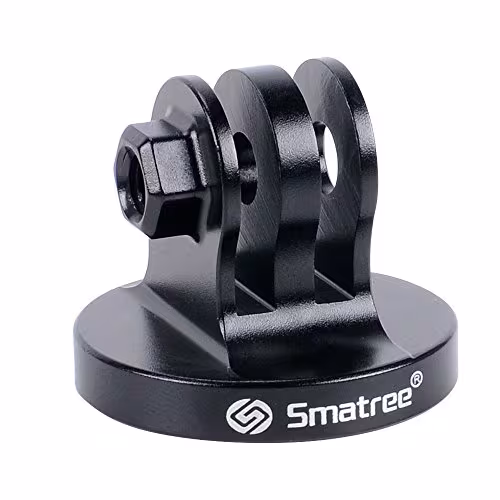

You can also go a step up with machined aluminum for extra strength, like this one:

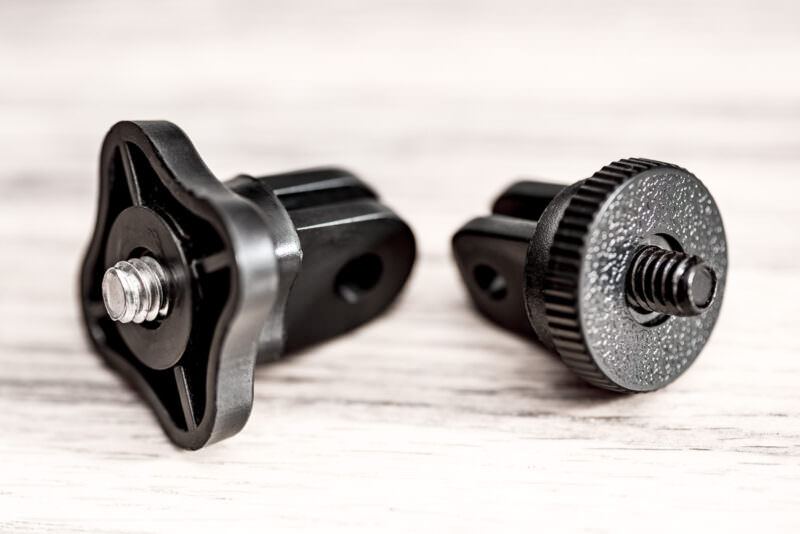

Reverse adapter

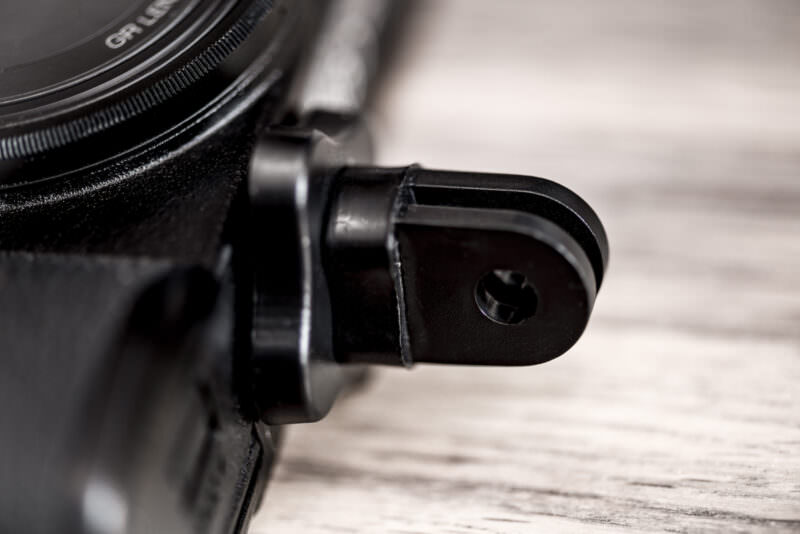

The basic option above attaches to a stud or bolt. But what if you want to do the reverse? This can be useful for attaching another camera that has a standard tripod socket to a GoPro mount. It can also be useful for other types of connection systems like camera cages or studio mounts like SuperClamps (see below).

While these aren’t strictly tripod mounts, they do use the standard 1/4-20 connector thread, so I’m including them here.

On many of these, the broader plate doubles as a separate tightening mechanism. That’s useful for locking the alignment in place.

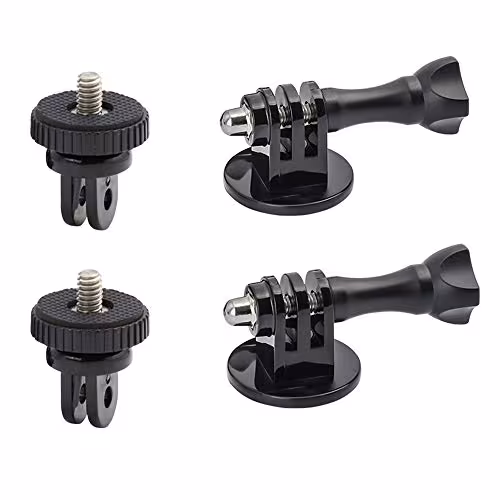

You can also find combination packs, like these.

While these are good for attaching a regular camera to a GoPro mount system, you do want to make sure that it’s appropriately secure for the camera. Heavy cameras, for instance, would likely be better served by a stronger aluminum adapter or one of the options below that offer a larger surface area in contact with the camera to minimize the risk that the socket on the camera breaks.

Quick release buckle

You can also get quick-release buckles that will attach. The quick-release buckles have become my preferred approach because you get the combination of firm, reliable connection with the convenience of a standard quick-release clip.

I’ve yet to find one of these that I’m happy with. The problem I’ve run into is that some of these have too much tolerance in them. Put another way, they’re just a little too big for the clip, which means that the camera will wobble. And I’d strongly prefer machined aluminum over plastic. But I’m still looking for one I’m happy with, so I can’t recommend any of these right now. If you’ve found a good one, I’d love it if you let me know in the comments.

Other adapters

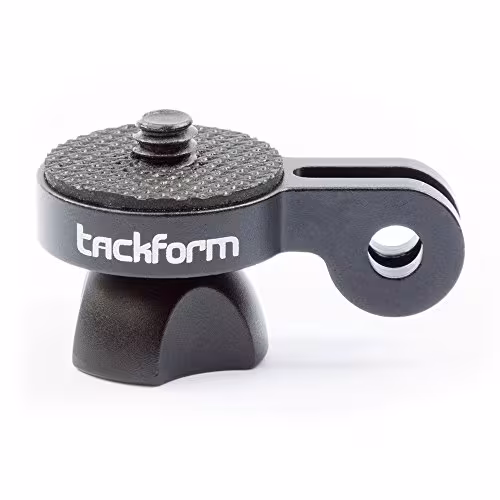

Some other variations move the camera away from directly over the mount point. They’re useful in two ways. Firstly, with a broader base, it spreads the leverage out and reduces the risk of the socket itself breaking or coming loose, something I’ve had happen. These longer adapters have a broader plate and add security. Secondly, they’re useful when you need more control over the shooting angle or are trying to reduce the risk of a tripod plate or legs getting in the shot.

There are a bunch of different variations on the theme. Some are longer and some are aluminum rather than plastic. A simple example is this one.

Special cases

Here are some special cases I’ve run into and some solutions.

Manfrotto Super Clamp / Impact Super Clamp

When you really need a firm hold, it’s hard to beat a Manfrotto SuperClamp (or the less-expensive alternative from Impact). They’re big and heavy–especially compared to a small, lightweight action camera–but they provide a rock-solid mounting point.

Clamps like these are designed to be utilitarian and have a bunch of different connection options. The traditional stud will work in combination with the basic adapter, although I don’t like having the risk of it unscrewing and the alignment issues. There’s also some risk of obscuring some of the field of view at some shooting angles.

So I prefer a low-profile reverse adapter.

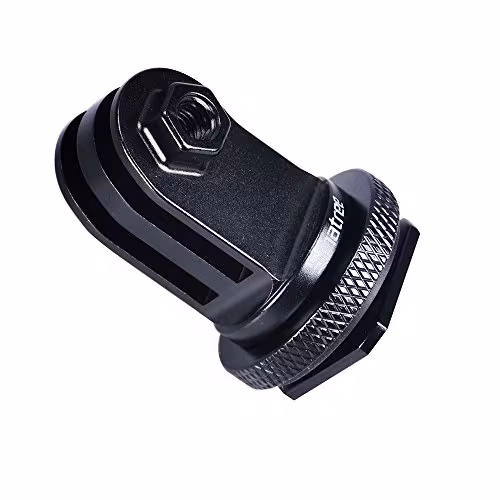

Mounting a GoPro in a camera hot shoe

Okay, so this isn’t using a tripod connection at all, but it’s broadly related, so I’ll include it here. But there are times you mount the camera on top of another camera using the primary camera’s hot shoe. Some photographers like to do so that they can shoot video with the GoPro while simultaneously shooting stills (or video, for that matter) with the primary camera. It’s also useful if you want to attach a GoPro to a flash stand. It’s worth noting that these are cold shoe connectors because they don’t transfer any electronic signals.

Notes & References:

1. The International Standards Organization has published ISO 1222:2010: Photography – Tripod Connections that specifies the screw connections used between a camera and a tripod or other accessories. [↩︎]
2. There’s an older British standard known as 3/16-24 BSW that you might come across on some older tripods. It’s very similar and mostly cross-compatible. [↩︎]
