Shooting Video with the Nikon D3500 – Features & Modes Explained

Here’s a rundown of the various features and modes of the Nikon D3500 for shooting video.

Nikon D3500 Video Modes & Settings
Last Updated:
Filed Under: Video

This post may include affiliate links. Read more.

The Nikon D3500 is primarily a photo camera, and that’s where the emphasis is for most of its features and modes. But you can shoot videos (or movies) with it, even if the video features are quite basic.

Resolutions & Framerates

1080p / 60, 50, 30, 25, 24
720p / 60, 50

It’s worth noting that the D3500 doesn’t have a switch between NTSC and PAL modes, but you toggle that by selecting the framerate. In other words, if you want to shoot NTSC-compatible video, use the 60, 30, or 24 frames per second modes.1 If you want to shoot PAL-compatible video, shoot at 50 or 25 frames per second.


The video saved by a D3500 has a .MOV file extension. It’s encoded with AVC, and the audio is encoded as 48 kHz PCM stereo.

Movie Quality / Video Bitrates

All video recorded by the D3500 (and most other cameras) is compressed before it’s saved to the SD card. The video bitrate is the amount of data that’s used to represent the video image, measured per second. The higher the bitrate, the higher the potential quality, but also the more space it uses on the memory card and the faster the data needs to be written to the card. The lower the number, the more the video is compressed and the lower the potential image quality. In other words, it’s a lot like the compression of JPG photos—the more you compress them, the smaller the files, but the more the image quality suffers.

The Nikon D3500 has two quality settings for each of the sizes and framerate combinations: High quality and Normal. These correspond to different bitrate settings.

The Nikon D3500 records video at a bitrate of between 12 Mbps and 36 Mbps.2 The precise setting depends on which resolution/framerate combination you’re using as well as whether you have the quality setting at Normal or High. This table shows which bitrates are used with what settings.3

Resolution/Framerate Normal Quality High Quality
1080p60 22 36
1080p50 22 36
1080p30 12 22
1080p25 12 22
1080p24 12 22
720p60 12 22
720p50 12 22

Those settings are quite low, which further reinforces that the emphasis with this camera is on shooting still images. Some high-end consumer cameras, for instance, can shoot at up to 400 Mbps.

Maximum Shooting Time

The maximum time you can shoot a single, uninterrupted recording is 20 minutes. It will automatically stop the recording after that time, and you’ll have to restart shooting another clip if you want to shoot more.

There is an exception: if you’re using either the 1080p60 or 1080p50 modes with the High Quality setting on, the maximum is 10 minutes.

For background, here’s a good explanation of the various reasons DSLRs like the D3500 have recording limits.

Other Features

The D3500’s video features are quite basic, and you won’t find things like in-camera video stabilization, newer codecs like HEVC, or raw video capture.

How to Shoot Video with the Nikon D3500

The basic way to shoot video is simple, but there is a catch that’s not immediately self-evident. If you just press the video record button (the small button with the red dot, next to the main shutter button and power on/off switch), you probably won’t get any response.

That’s because what you have to do first is to turn on the LiveView to show the image on the back screen. To do that, use the small lever on top next to the mode dial. Pull it back to toggle LiveView on and off.

Once you’ve done that, you can choose from the shooting modes. For the simplest, start with the P shooting mode. Worth noting is that if you try to change the shooting mode while recording, it will cancel the recording.

Settings & Options

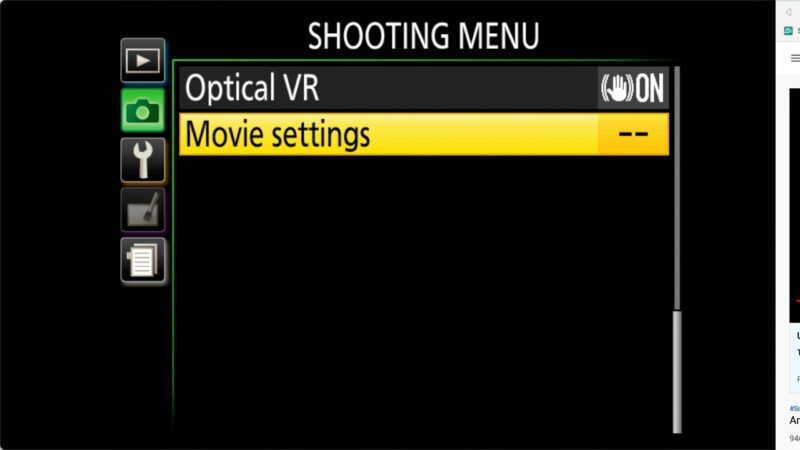

Aside from the resolution and framerate combination, the D3500 also has these options available. You can find these in the camera’s menu system under the camera icon and then Movie Settings.

Nikon D3500 Video Modes & Settings

Resolution and Framerate

As mentioned above, the D3500 can shoot 1080 and 720 video with framerates from 24fps to 60fps. Both 1080p and 720p are considered HD video and are good resolutions for web video. Both are much smaller than the 4K, 5K, or 8K that some other cameras can shoot.

Nikon D3500 Video Modes & Settings

On the D3500, “frame size” is used rather than “resolution.”

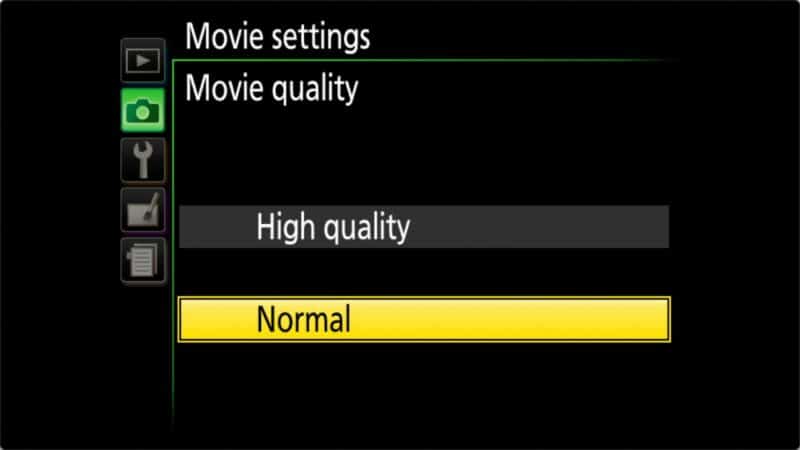

Movie Quality

You can choose between High and Normal. These correspond to different bitrate settings.

Nikon D3500 Video Modes & Settings

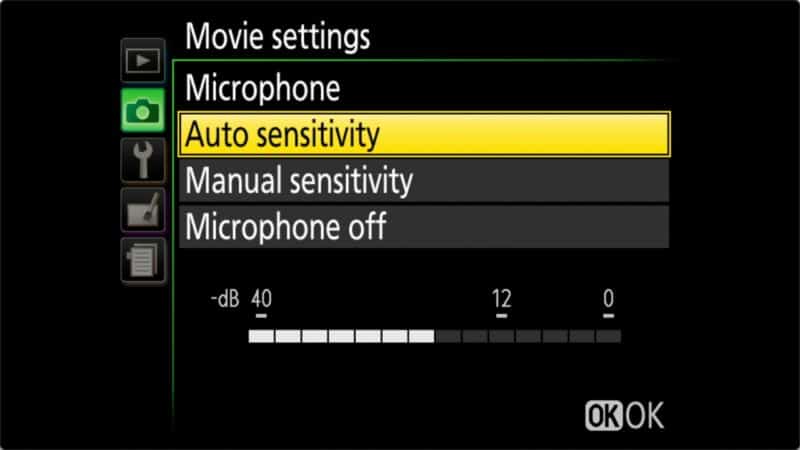

The D3500 has an onboard microphone for capturing audio. It does not have a port for an external mic.

The sound quality of the onboard microphone isn’t great, and if audio quality is important, you’ll get much better results from an external recorder (or upgrade to a higher model that at least has a port for an external mic).

That said, these are the options the D3500 has for controlling the microphone.


  • Auto sensitivity (default)
  • Manual sensitivity
  • Microphone off

For general run-and-gun shooting, the Auto sensitivity is probably what you want.

The manual option is better for planned shoots where the sound is important, such as a musical or vocal performance (but an external recorder would be even better for those).

But if you’re shooting video only and don’t need or want the audio, you can turn the microphone off. It’s useful if, say, you’re shooting scenic footage and plan to add a soundtrack later. It’s easy enough to remove an audio track in a video editing app, but this just saves a step.

Nikon D3500 Video Modes & Settings

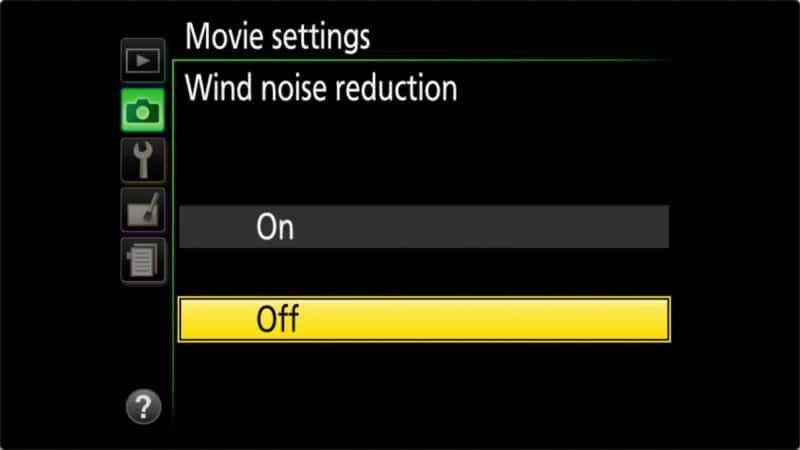

Wind Noise Reduction


  • On
  • Off (default)

This is an audio filter that tries to reduce the whooshing sound that microphones pick up when the camera is moving or in the wind. It works okay, but is still only a basic level filter.

Nikon D3500 Video Modes & Settings

Manual Movie Settings

There is an exception. You can also wrest some manual control over the shooting settings by enabling the Manual movie settings option. Setting this to On lets you manually select the shutter speed and ISO.

Nikon D3500 Video Modes & Settings

To do this, first enable the setting under Shooting Menu > Manual movie settings. Then rotate the top dial to M and select the shutter speed and sensitivity. You can then start recording the video with those settings.

How to Download Videos to a Computer

The D3500 has some basic image editing features built in, but nothing in the way of video editing. So you’ll need to do that elsewhere. I’ve put together a detailed guide on how to download Nikon D3500 photos and videos separately.

What Kind of SD Card to Use?

Some cameras need very fast SD cards to keep up with the amount of data being written to them when recording video. The D3500 isn’t one of them.

With relatively low video bitrates, the D3500 isn’t particularly demanding of the speed of the SD card. So you don’t need the fastest and most expensive card for this camera. I’ve put together some practical suggestions on the best SD cards for the Nikon D3500 here.


The D3500 has a built-in HDMI port that you can use in combination with a display or video recorder to capture a live video feed.

The HDMI port is for a Type C connector, also known as a Mini-HDMI connector. Nikon’s model number for their own HDMI cable is HC-E1, but in practice you don’t need to use the Nikon-branded version.

Things Worth Knowing

The maximum continuous shooting time for a single clip is 20 minutes. Unless you’re shooting 1080p60 or 1080p50 with the High Quality Setting on, in which case it’s a maximum of 10 minutes.

There’s no in-camera video stabilization. That’s something you’ll have to apply in post-production (or when you upload to a service like YouTube that offers that feature).

Shooting video chews through quite a bit of battery power, so expect to deplete the battery more quickly than if you’re just shooting stills.

All the usual optical tools on the lens are available, including zooming and manual focus.4

  1. The 24fps setting is known as a film rate, or sometimes NTSC-film, and is technically 23.976 frames per second. And while we’re at it, some of the other framerates are rounded numbers. More precisely, 30 fps is actually 29.970 fps, for example.
  2. A common area of confusion has to do with the difference between Mbps and MBps. Mbps (or Mb/s) stands for megabits per second, the typical measure used for video. It’s different from megabytes per second (written as MBps or, more commonly, MB/s). There are eight bits in a byte, so one megabyte equals eight megabits.
  3. Like most cameras, the D3500 encodes its video with a variable bitrate encoder. That tries to adjust the quality on the fly based on the image data. The result is that the bitrates can fluctuate slightly from clip to clip. In this table, I’ve rounded them to the target bitrate, but in real-world shooting, you might see a variance of up to 1-2 Mbps either way.
  4. With some Nikon lenses on the D3500, including the standard kit lens 18-55mm, manual focus is disabled by default. So if you turn the focus ring on the lens, nothing happens. To enable it, go to the Setup Menu tab and turn “Manual focus ring in AF mode” option to “ON”.
David Coleman / Photographer
by David Coleman

I'm a professional freelance travel photographer based in Washington DC. Seven continents, up mountains, underwater, and a bunch of places in between. My images have appeared in numerous publications, and you can check out some of my travel photography here. More »

2 thoughts on “Shooting Video with the Nikon D3500 – Features & Modes Explained”

  1. Thanks for your useful advice David but I’m still stuck. I am the trustee of a local theatre company and up to a few weeks ago was happily shooting some video footage of rehearsals. I came to shoot some more footage last week and despite rotating the live view switch to display the view in the camera monitor and pressing the shutter release button half way to focus, when I press the movie record button nothing happens and no recording indicator appears on the screen. Help! All the camera settings seem to be OK but I just can’t record movies. If you can suggest a solution I’d be very grateful. Thanks

    • Hi Chris. I haven’t run into that issue so don’t have a quick fix for you. I’ve tried to recreate the problem on my D3500 but haven’t been successful. You might have already checked the memory card, but that would be the first thing I’d check. Maybe it’s full or has an error? I can’t find a setting that would be preventing the recording from happening so long as you have Live View showing on the back screen.
